Savio Pond Free Packages
- UPC:
- 658848587322
- Weight:
- 80.00 LBS
Description

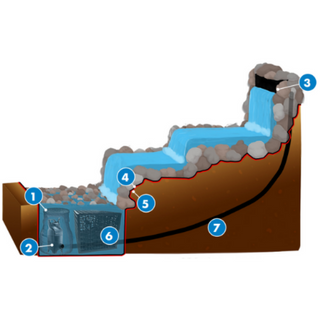

Pond Free® waterfall kits are an excellent choice for homeowners seeking to upgrade their existing landscape. These recirculating water features are easy to install, very low maintenance, and offer unlimited design flexibility. Water flows downstream, along the spillway, collects into a reservoir, and is pumped back up to the spillway. Pond Free Waterfall kit components are selected for compatibility and performance to provide enhanced aesthetics to your landscape. An ideal choice for families with children or pets without the precautions needed for pools.
Pond Kit Component Specifications

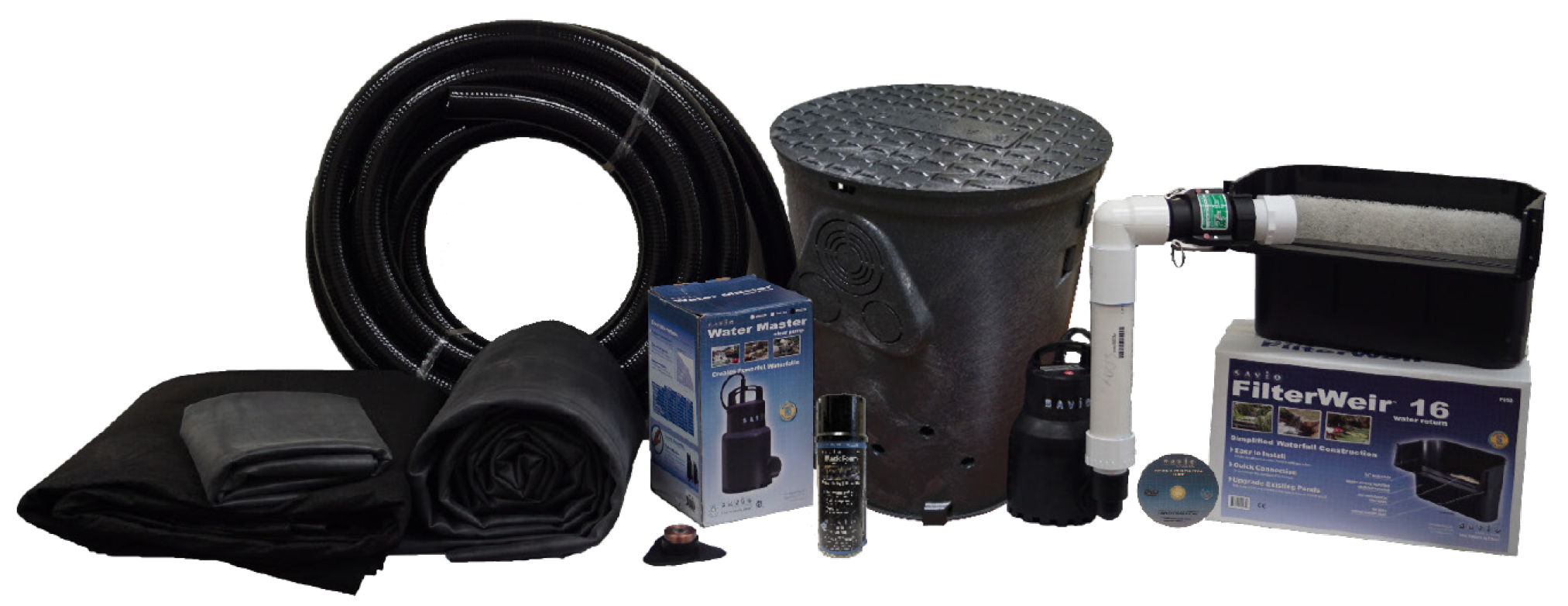

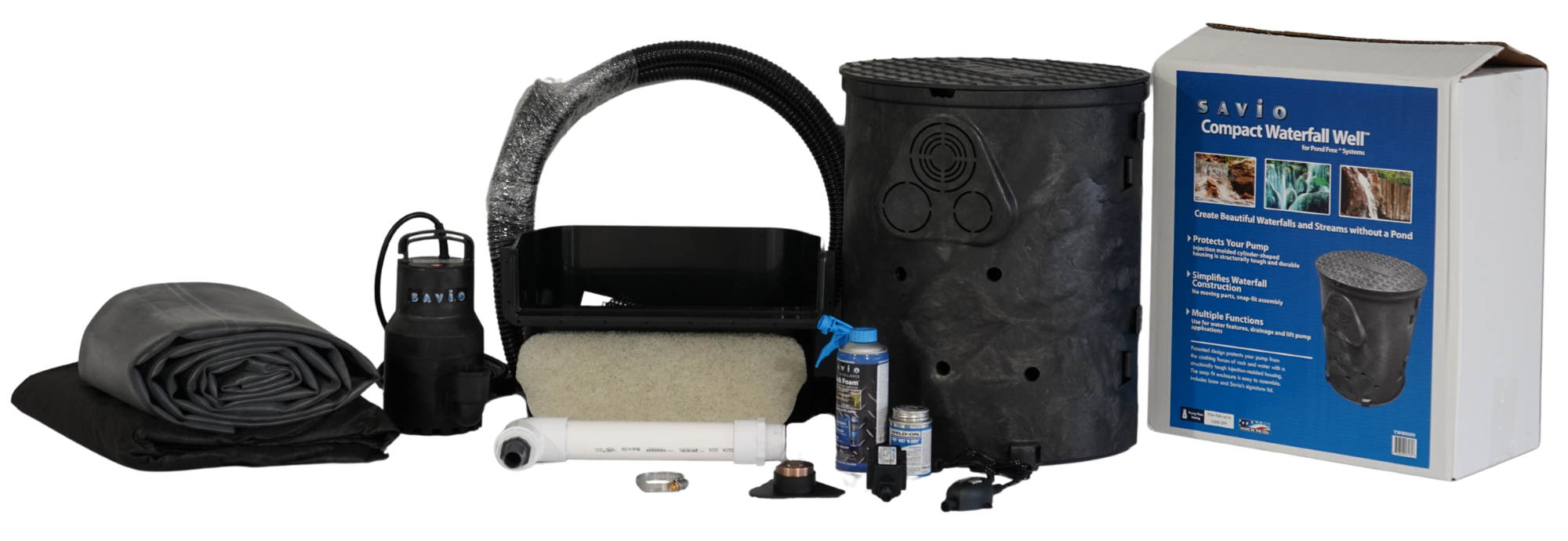

Mini Pond Free Package
• F050 16" Waterfall Filter
• CWW0500 Waterfall Well

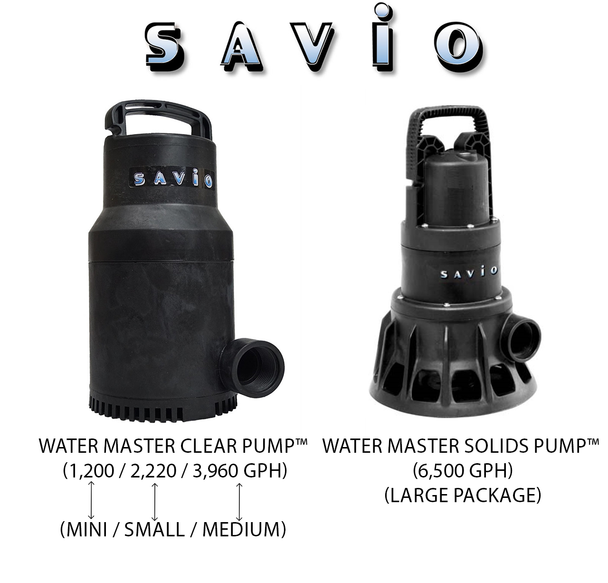

• Savio Water Master Clear Pump™ 1,200 gph

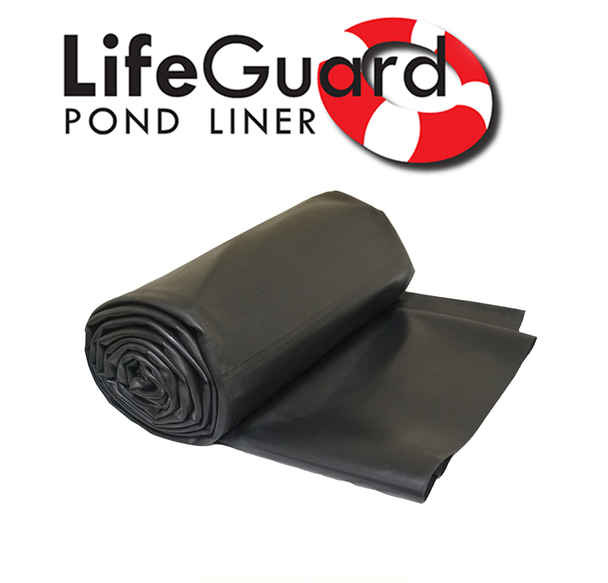

• 45-Mil EPDM LifeGuard Pond Liner®
• Extra Liner Included (5' x 5') for Waterfall Feature

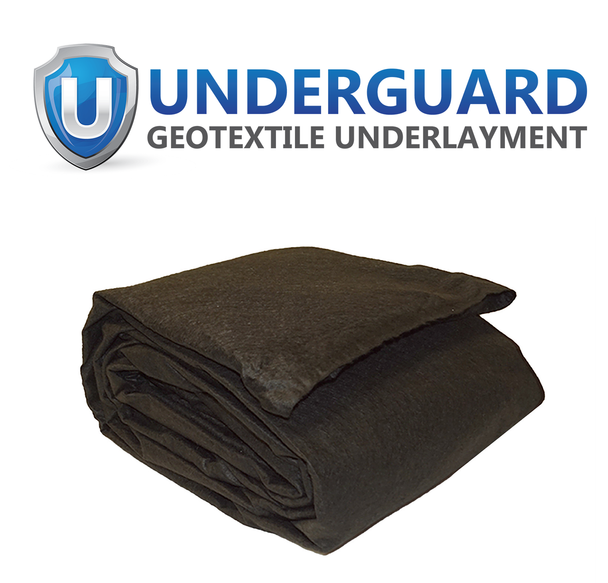

• UnderGuard®
Geotextile Underlayment (10' x 10')
• 1" x 25' Kink Free Tubing
• Ignite® Puck Light
• K6013 Pump Discharge for WW1000
• 16oz Can Waterfall Foam
• PVC Glue & Necessary Plumbing Fittings

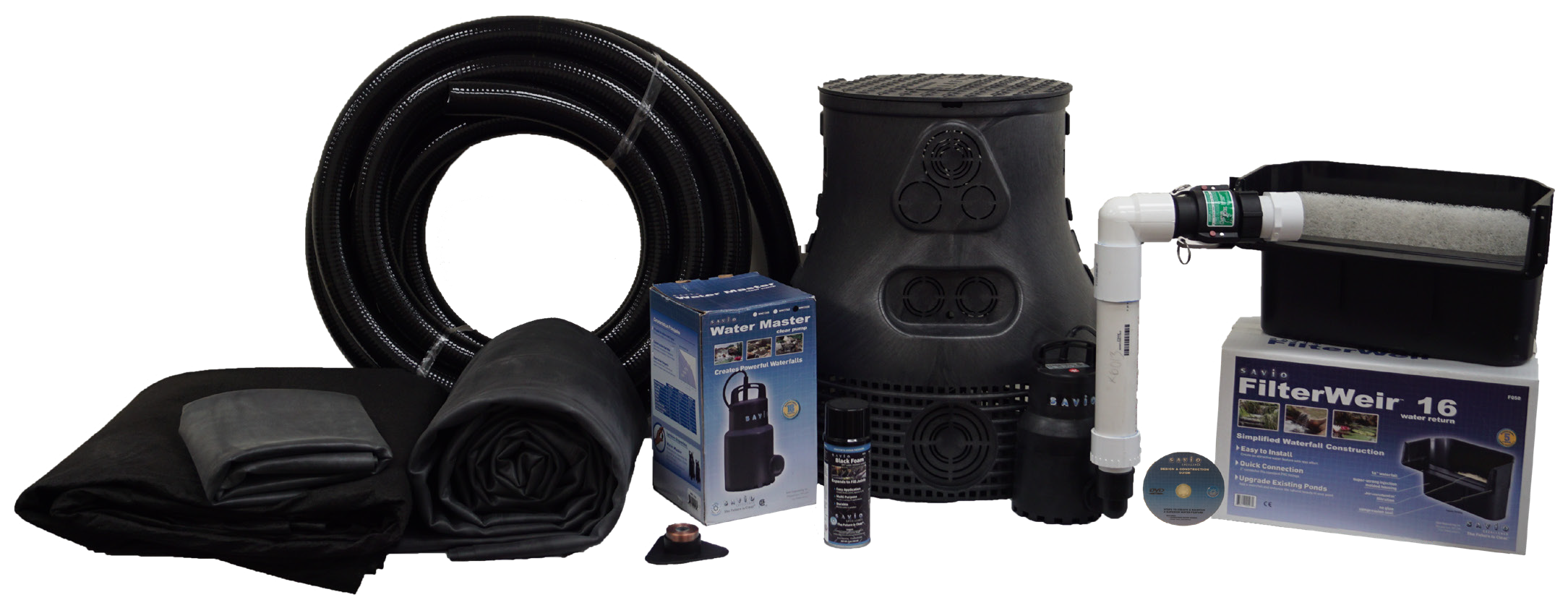

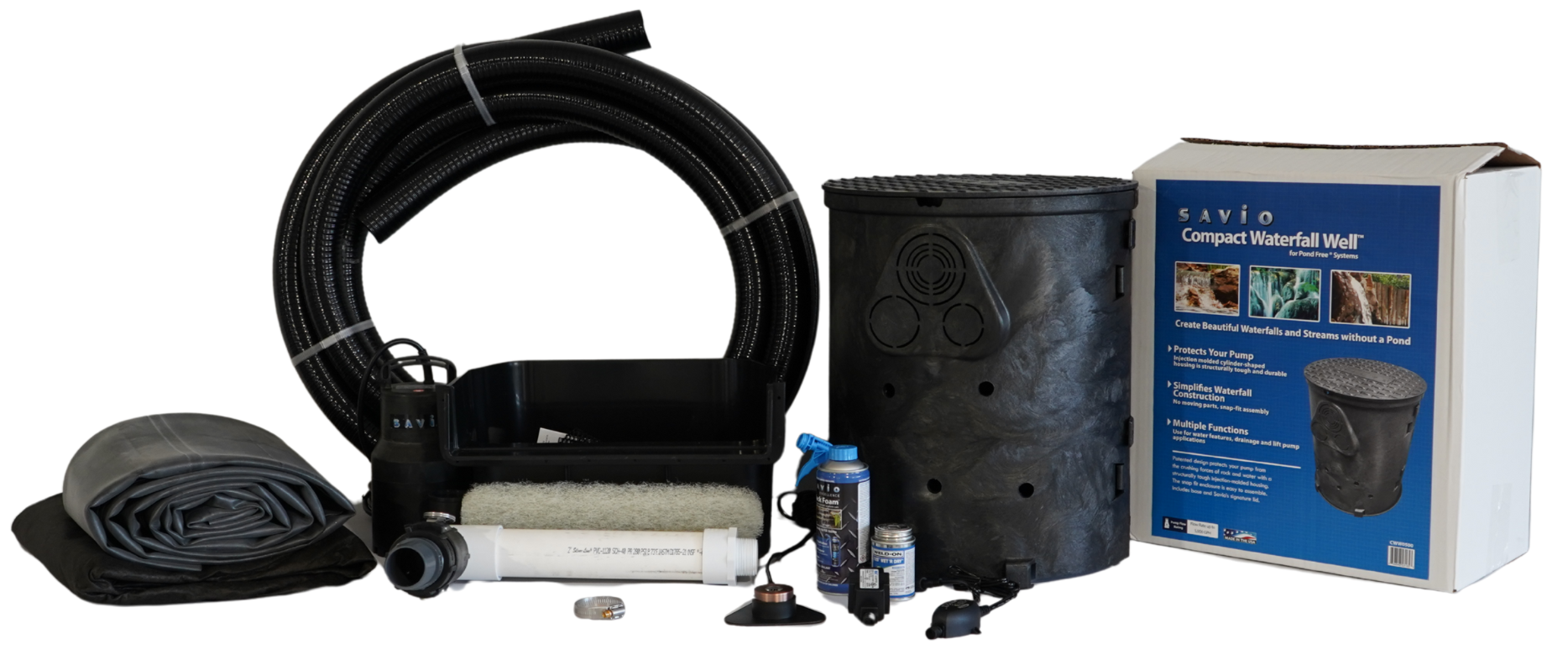

Small Pond Free Package
• F050 16" Waterfall Filter
• WW1000 Waterfall Well
• Savio Water Master Clear Pump™ 2,220 gph
• 45-Mil EPDM LifeGuard Pond Liner®
• Extra Liner Included (5' x 5') for Waterfall Feature
• UnderGuard®
Geotextile Underlayment (10' x 15')
• Ignite® Puck Light

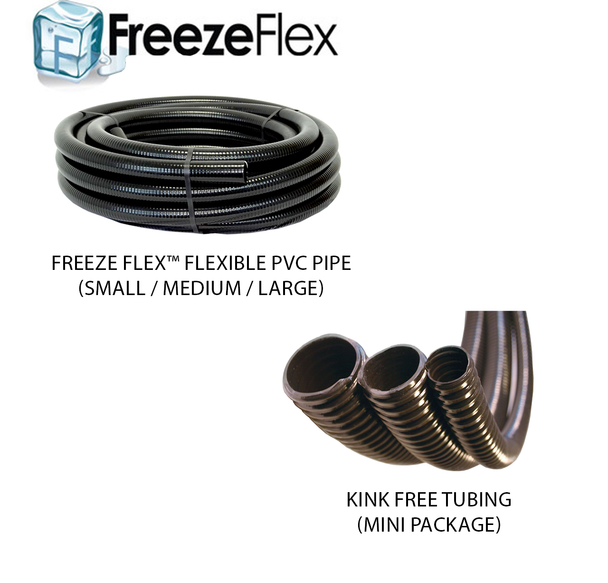

• 2" x 20' Freeze Flex™ Flexible PVC Pipe
• K6013 Pump Discharge for WW1000
• 16oz Can Waterfall Foam
• PVC Glue & Necessary Plumbing Fittings

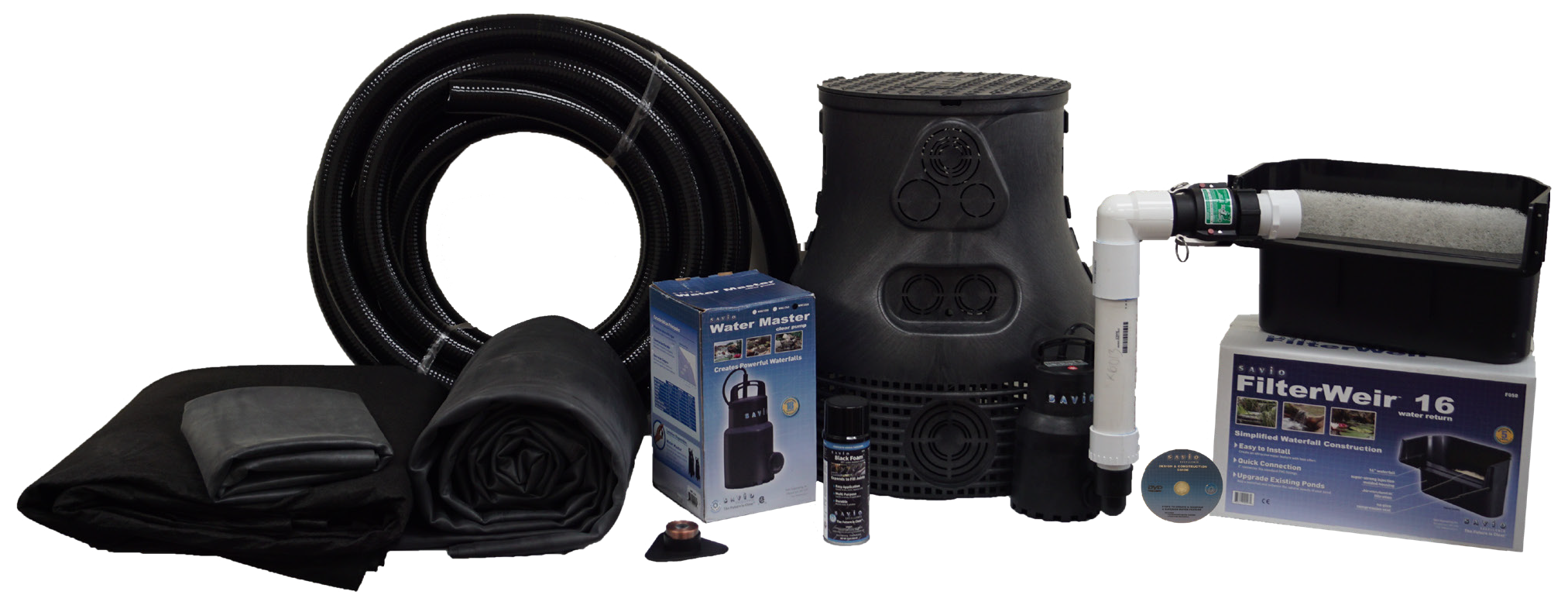

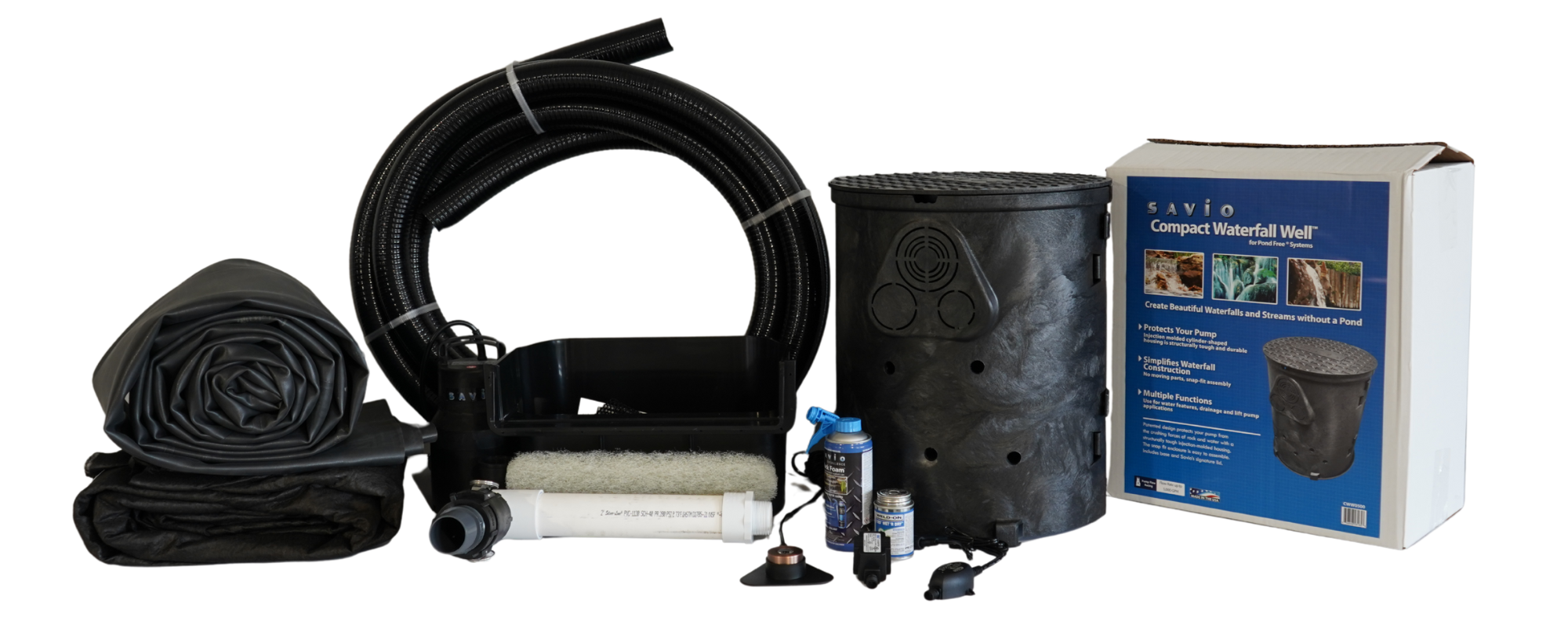

Medium Pond Free Package
• F050 16" Waterfall Filter
• WW1000 Waterfall Well
• Savio Water Master Clear Pump™ 3,960 gph
• 45-Mil EPDM LifeGuard Pond Liner®
• Extra Liner Included (5' x 5') for Waterfall Feature
• UnderGuard®
Geotextile Underlayment
• Ignite® Puck Light
• 2" x 20' Freeze Flex™ Flexible PVC Pipe
• K6013 Pump Discharge for WW1000
• 16oz Can Waterfall Foam
• PVC Glue & Necessary Plumbing Fittings

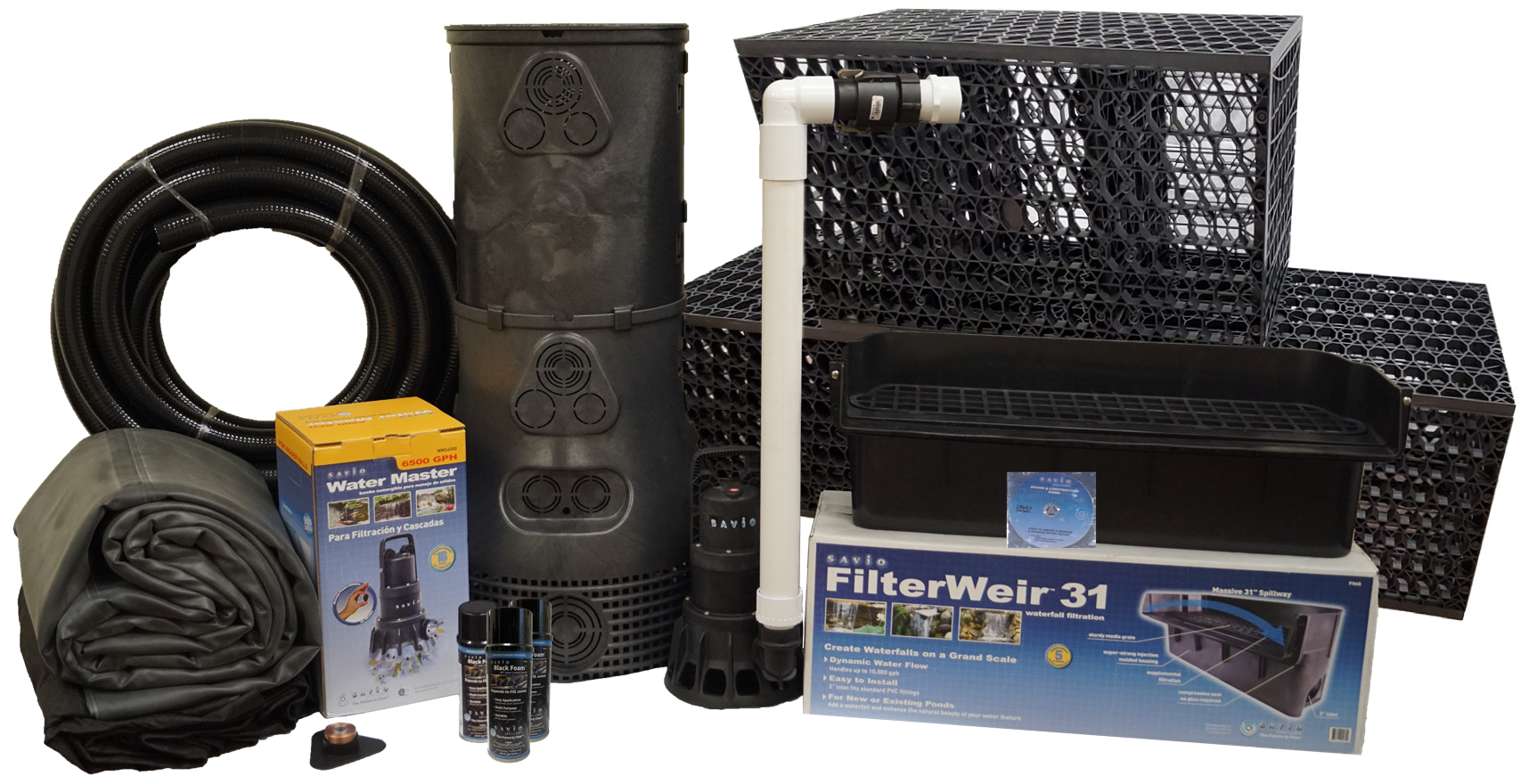

Large Pond Free Package
• F060 31" Livingponds® Waterfall
• WW1000 and K6001 Extension
• Savio Water Master Solids Pump™ 6,500 gph
• 10' x 25' 45-Mil EPDM LifeGuard Pond Liner®
• 10' x 25' UnderGuard® Geotextile Underlayment

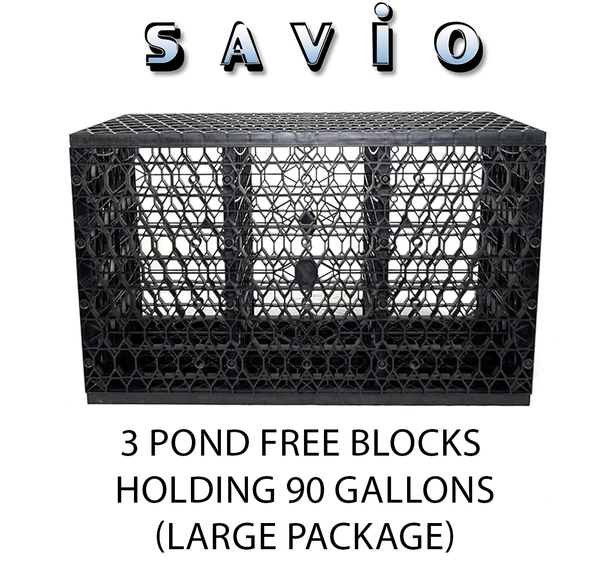

• 3 Pond Free Blocks Holding 90 Gallons
• Ignite®
Puck Light
• 2" x 30' Freeze Flex™ Flexible PVC Pipe
• K6014 Pump Discharge & Plumbing Fittings
• 3 Cans of 16oz Waterfall Foam
• PVC Glue & Necessary Plumbing Fittings
Step-by-Step Pond Free®
Design & Sizing Guide
(To Help Measure & Calculate)
Decide the footprint of your Pond Free® feature. This will define how much water your system needs to handle.
L = Total length of waterfall and streamway combined
W = Average width of the streamway and waterfall
D = Average depth of the streamway in feet (e.g. 3” = 0.25’)
L × W × D = Cubic Feet of Water in Transit (WIT)
Note: 1 ft³ of water = 7.48 gallons
Example: 5’ Length × 2’ Width × 0.25’ Depth = 2.5 ft³
2.5 × 7.48 = 18.7 gallons ≈ 20 gallons
We recommend a basin that holds 2.5× the WIT. Use the calculator below to size your basin:
Use Pond Free® blocks and a waterfall well for compact, efficient basins. Based on your calculated gallons, we’ll recommend a package:

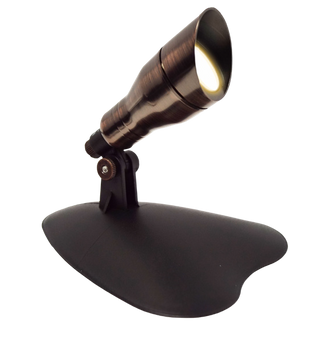

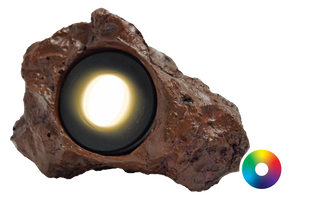

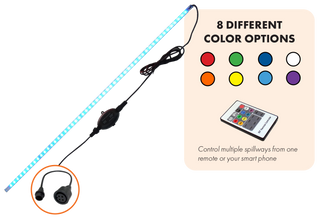

Light It Up With
