Description
Waterfall Weirs make it easy to create stunning, natural-looking waterfalls for ponds and pond-free water features. Available in multiple sizes—from 10" to 31"—these weirs fit a variety of applications and are compatible with existing filtration systems. Each weir includes a filter mat, and options like the Bio Comb™ provide additional biological filtration. Constructed from durable, UV-resistant, high-impact materials, Waterfall Weirs deliver low-maintenance, long-lasting performance while enhancing water clarity, promoting fish health, and adding a professional finish to any water feature.
F050 & F060 Filter Weirs
| Product | Part # | Max Flow | Dimensions | Weight (lb) |
|---|---|---|---|---|
| 16" Waterfall Weir (3.5" Lip Overhang) | F050 | 5,000 GPH | 17.5" x 10.5" x 10" | 4 |
| 31" Waterfall Weir (2" Lip Overhang) | F060 | 10,000 GPH | 33" x 12" x 10.5" | 18 |
| NEW 10" Waterfall Weir (6" Lip Overhang) | ANJ10 | 1,200 GPH | 10" x 12.5" x 6" | 1.5 |

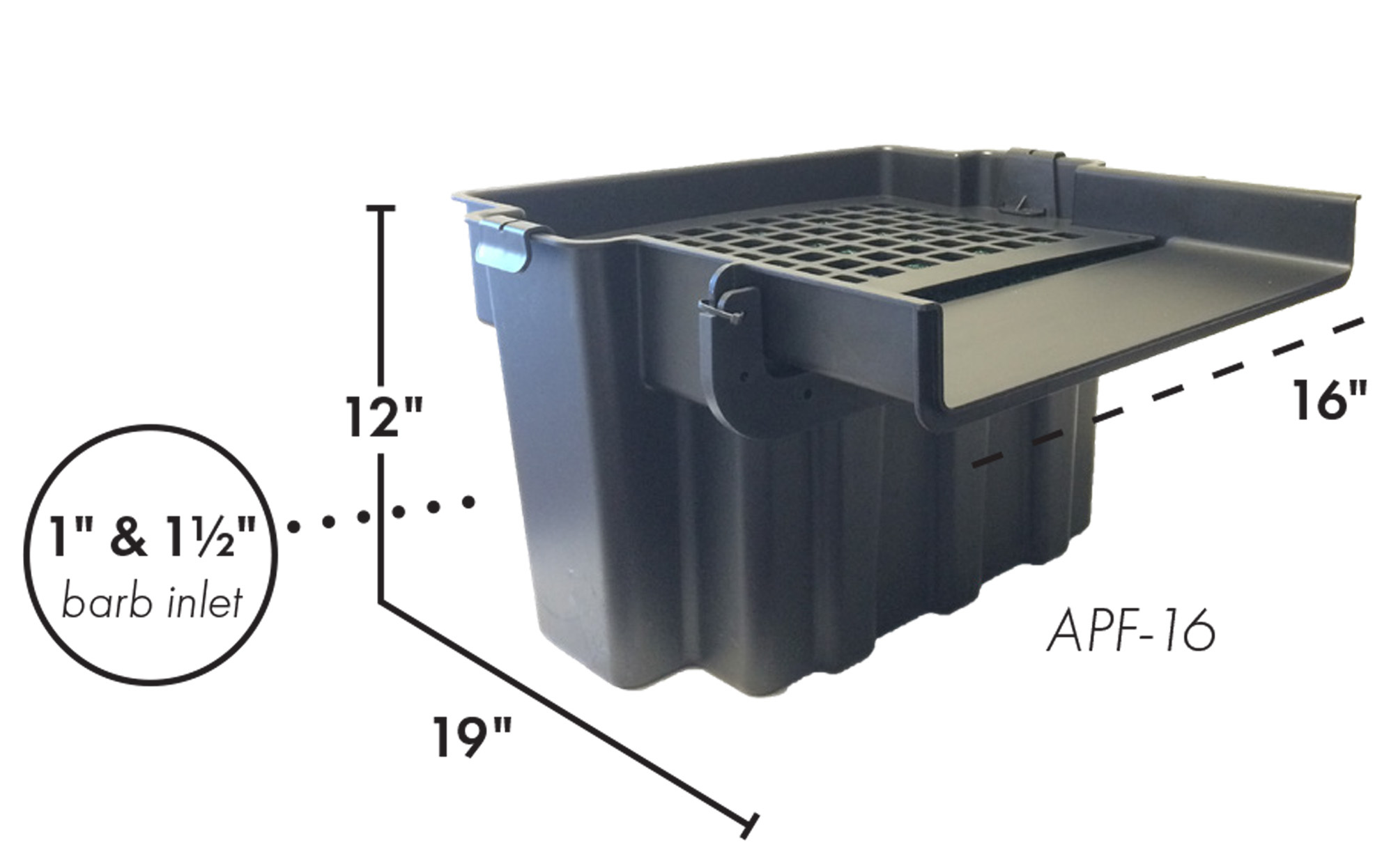

| 16" Waterfall Weir (5" Lip Overhang) | APF-16 | 2,400 GPH | 16" x 19" x 12" | 8 |
| Livingponds w/ 16" faceplate (3.5" Lip Overhang) | F070 | 5,000 GPH | 33" x 12" x 10.5 | 4 |
F050 & F060 FILTER WEIR
• Easily create an impressive waterfall
• Available with 16" or 31" waterfall weir
• Easily retrofit with existing ponds and pond free systems
• 2" slip-fit inlet (F050) made to accept 2" pipe
• 3" slip-fit inlet (F060) made to accept 3" pipe
• Includes 1 filter mat
• Add Bio Comb for additional filtration

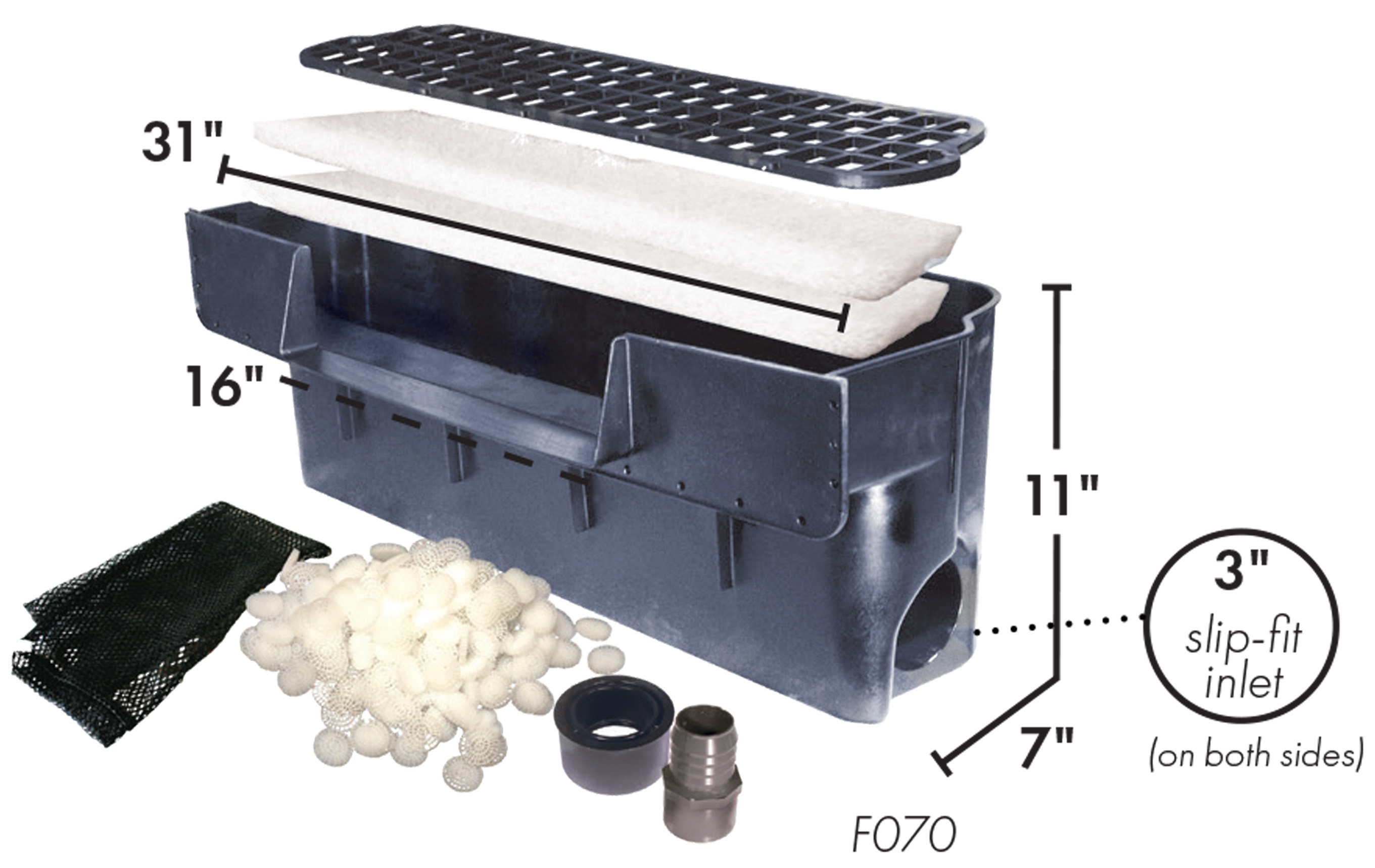

F070 LIVINGPONDS® FILTER
• Biological and mechanical filtration for clean, clear water
• 31" filtering weir with 16" faceplate
• Pair with Compact Skimmerfilter and UV clarifier for total
filtration of ponds up to 1,200 gal

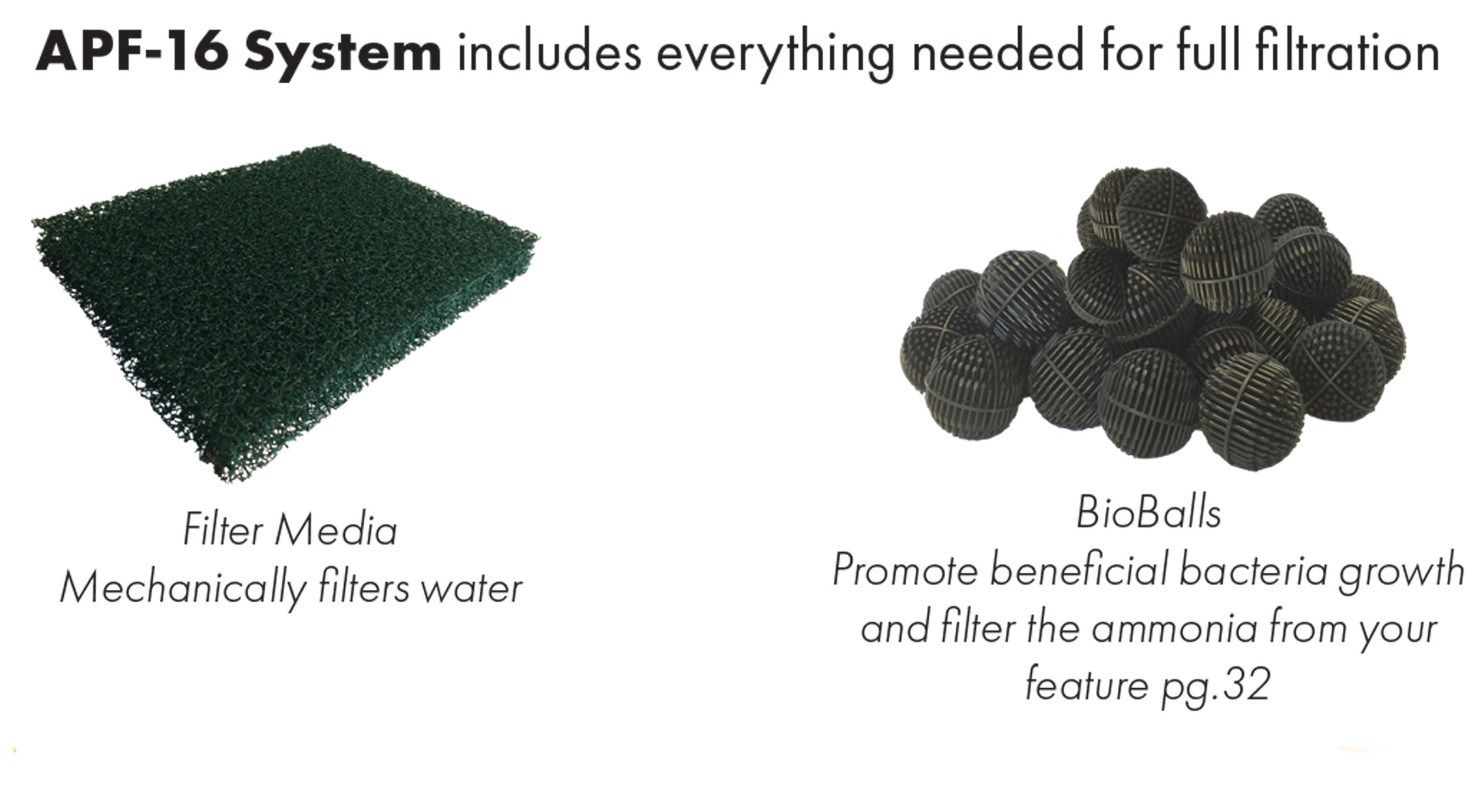

• Includes 2 filter mats, Bio Comb, and media filter bag
• 1.5" barb connection, designed to be used with 1.5" tubing
for increased filtration
• Can be plumbed from either side, includes 3" Inlet Plug to
seal opposite side

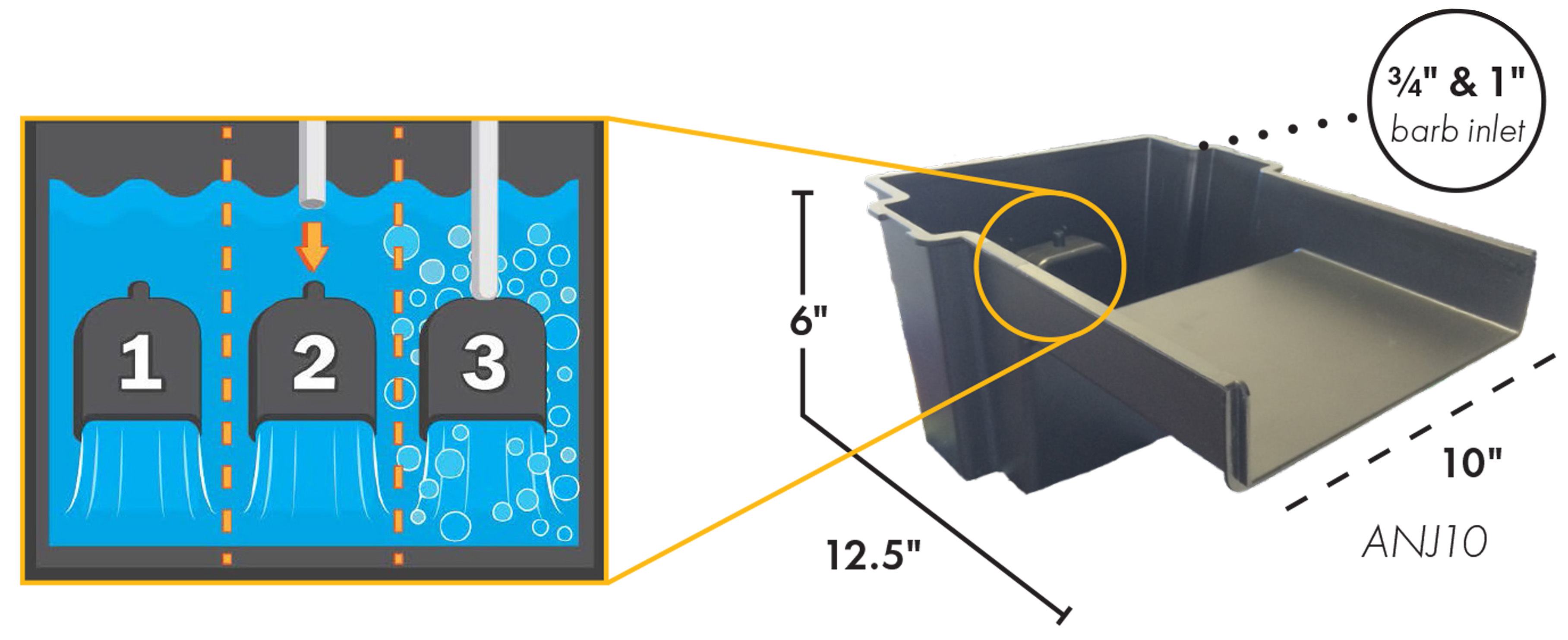

INCREASE OXYGEN LEVELS
1. Water inlet without tube
2. Add a length of tubing to the water inlet
3. Inlet draws oxygen into the waterfall
(Add filter media for enhanced filtration)
ANJON PROFALLS
• ProFalls create an elegant waterfall for your feature
• Biological and mechanical filtration provides clean and clear water while promoting fish health
• Constructed of durable, UV resistant, high-impact plastic
• Low maintenance and long-lasting performance to create healthy ponds
